AEI is a premier supplier of a precision line of high speed, low noise, durable, user friendly, liquid or air cooled slip rings. Our fleet of standard and custom slip rings are used in a variety of applications world wide for testing and development of rotating machinery.

System Description

AEI's slip rings transfer very clean and quiet signals from rotating sensors to stationary data systems. Typical applications include strain and temperature surveys of compressors and turbines, shaft torque and bending measurements, and power transfer on/off the rotor.

Instrumentation Accessories:

AEROSHIM

• Aeroshim - Regular
• Aeroshim - Rolled
• Aeroshim - Ribbon
• Aeroshim - Kits
• Aeroshim Forming pliers

Tools and Materials

• - AeroWeld
• - Brazing/soldering supplies
• - Adhesives/epoxy/silicone
• - Wire stripping – Chemical
• - Wire stripping – Manual
• - Wire stripping – lathe tools
• - Wire stripping – aeroblasters
• - Tubulations
• - General supplies
• - Lab equipment
• - T/C Wire
• - Pre-Cut tubing
• - Cable/Wire
• - Tubing

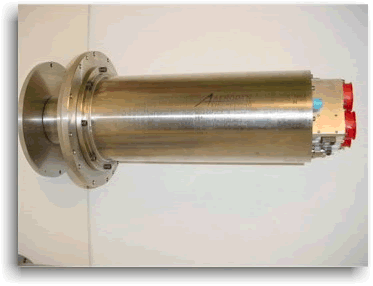

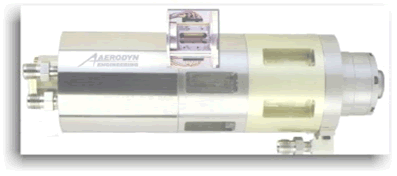

High Speed Slip Ring

Our Gold alloy contacts provide very quiet signals, long life, and high contact density.

Our designs are the result of decades of experience as slip ring users and designers. The units are very easily adapted to the test article and are very robust.

Standard Features and Specifications Include:

• - Gold Alloy Contacts
• - Cleanest Signals Available - < 250 microvolts p-p at any frequency (25mA drive current)
• - Durability: > 100 Million revolutions
• - Ease of Installation
• - Air Cooled
• - Liquid Cooled - (Non CFC coolants available)
• - Super Precision Ground Shaft
• - Grease or Oil Mist bearings, application specific (Bearing T/C's supplied)
• - Connectors - Multipin Mil-Spec
• - Customer Owned SlipRing Refurbishing (All Brands)

Custom Designs

AEI can apply our experience to create custom designs to meet challenging applications.
Examples are:

• - Intermediate bearing assemblies with multiple termination capability (for example, 200 termination contacts monitored by a 100 contact slip ring)
• - On-rotor multiplexing switches to monitor a greater number of channels
• - Very small high speed rings- to 150,000 RPM
• - Automotive transmission slip rings
• - Flight test slip rings
• - Silver Graphite slip rings for blade-off testing and power applications

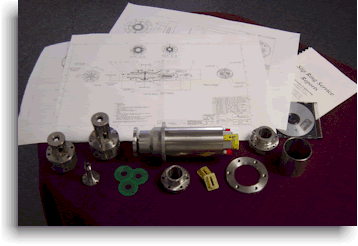

Installation Designs and Support

AEI welcomes the opportunity to design and fabricate the installation adapting hardware for the slip rings. This assures the customer that this hardware will be right and proven before the actual test. We typically assemble and spin test the hardware with the slip ring to assure that fit and stack-up are correct. Installation designs can include cooling cans for hot end installations, sealing arrangements for lead-wires exiting the engine shaft, and complicated outer-housing rotating installations.

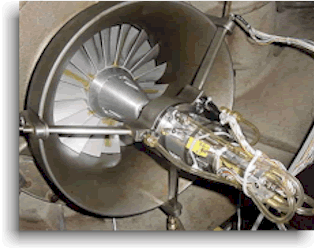

AEI can also provide complete support for the slip ring installations. Our technicians can terminate the rotating leads, mount the slip rings, and provide test support as required to assure successful testing and data quality.

424 Contact Slip Ring System

No. of Contacts:                  424
Max. Speed:　                    15,000 RPM 　　　
Life Expectancy      　　　  100 million revolutions
Direction:                             Bi-directional rotation permitted
Noise Signature:                  Less than 250 microVolts p-p at any discreet Frequency at 25 mA drive current
Bearing Lubrication;            Oil - Air Lubrication or grease packed bearings
Recommended Coolant:     Syltherm XLT
Coolant Flow Rate:              0.50 - 1.0 GPM
Max. Ambient Temp.:          300 F (Consult AEI for other ranges)
Max. Ambient Press:           50 PSIG (Consult AEI for other ranges)
Service Fittings:                  1/4 Swagelok
Output Connectors:             4x MIL-C-38999 Connectors

300 Contact Slip Ring System

No. of Contacts:                  300
Max. Speed:　                    20,000 RPM 　　　
Life Expectancy      　　　  100 million revolutions
Direction:                             Bi-directional rotation permitted
Noise Signature:                  Less than 250 microVolts p-p at any discreet Frequency at 25 mA drive current
Bearing Lubrication;            Oil - Air Lubrication or grease packed bearings
Recommended Coolant:     Syltherm XLT
Coolant Flow Rate:              0.50 - 0.75 GPM
Max. Ambient Temp.:          300 F (Consult AEI for other ranges)
Max. Ambient Press:           50 PSIG (Consult AEI for other ranges)
Service Fittings:                  1/4 Swagelok
Output Connectors:             3 x MIL-C-38999 Connectors

212 Contact Slip Ring System

No. of Contacts:                  212
Max. Speed:　                    40,000 RPM 　　　
Life Expectancy      　　　  100 million revolutions
Direction:                             Bi-directional rotation permitted
Noise Signature:                  Less than 250 microVolts p-p at any discreet Frequency at 25 mA drive current
Bearing Lubrication;            Oil - Air Lubrication or grease packed bearings
Recommended Coolant:     Syltherm XLT
Coolant Flow Rate:              0.25 - 0.50 GPM
Max. Ambient Temp.:          300 F (Consult AEI for other ranges)
Max. Ambient Press:           50 PSIG (Consult AEI for other ranges)
Service Fittings:                  1/4 Swagelok
Output Connectors:             2 x MIL-C-38999 Connector

150 Contact Slip Ring System

No. of Contacts:                  150
Max. Speed:　                    40,000 RPM 　　　
Life Expectancy      　　　  100 million revolutions
Direction:                             Bi-directional rotation permitted
Noise Signature:                  Less than 250 microVolts p-p at any discreet Frequency at 25 mA drive current
Bearing Lubrication;            Oil - Air Lubrication or grease packed bearings
Recommended Coolant:     Syltherm XLT
Coolant Flow Rate:              0.25 - 0.50 GPM
Max. Ambient Temp.:          300 F (Consult AEI for other ranges)
Max. Ambient Press:           50 PSIG (Consult AEI for other ranges)
Service Fittings:                  1/4 Swagelok
Output Connectors:             2 x MIL-C-38999 Connectors

100 Contact Slip Ring System

No. of Contacts:                  100
Max. Speed:　                    50,000 RPM 　　　
Life Expectancy      　　　  100 million revolutions
Direction:                             Bi-directional rotation permitted
Noise Signature:                  Less than 250 microVolts p-p at any discreet Frequency at 25 mA drive current
Bearing Lubrication;            Oil - Air Lubrication or grease packed bearings
Recommended Coolant:     Syltherm XLT at speeds below 40,000 RPM
                                         AK225 w/ oil mixture above 40,000 RPM
Coolant Flow Rate:              0.25 - 0.50 GPM
Max. Ambient Temp.:          300 F (Consult AEI for other ranges)
Max. Ambient Press:           50 PSIG (Consult AEI for other ranges)
Service Fittings:                  1/4 Swagelok
Output Connectors:             MIL-C-38999 Connectors

72 Contact Slip Ring System

No. of Contacts:                  72
Max. Speed:　                    75,000 RPM 　　　
Life Expectancy      　　　  100 million revolutions
Direction:                             Bi-directional rotation permitted
Noise Signature:                  Less than 250 microVolts p-p at any discreet Frequency at 25 mA drive current
Bearing Lubrication;            Oil - Air Lubrication or grease packed bearings
Recommended Coolant:     Syltherm XLT at speeds below 40,000 RPM
                                         AK225 w/ oil mixture above 40,000 RPM
Coolant Flow Rate:              0.25 - 0.50 GPM
Max. Ambient Temp.:          300 F (Consult AEI for other ranges)
Max. Ambient Press:           50 PSIG (Consult AEI for other ranges)
Service Fittings:                  1/4 Swagelok
Output Connectors:             37 Pin Mil-C-83513 (Qty 2)

36 Contact Slip Ring System

No. of Contacts:                  36
Max. Speed:　                    90,000 RPM 　　　
Life Expectancy      　　　  100 million revolutions
Direction:                             Bi-directional rotation permitted
Noise Signature:                  Less than 250 microVolts p-p at any discreet Frequency at 25 mA drive current
Bearing Lubrication;            Oil - Air Lubrication or grease packed bearings
Recommended Coolant:     Syltherm XLT at speeds below 40,000 RPM
                                         AK225 w/ oil mixture above 40,000 RPM
Coolant Flow Rate:              0.25 - 0.50 GPM
Max. Ambient Temp.:          300 F (Consult AEI for other ranges)
Max. Ambient Press:           50 PSIG (Consult AEI for other ranges)
Service Fittings:                  1/4 Swagelok
Output Connectors:             37 Pin Mil-C-83513

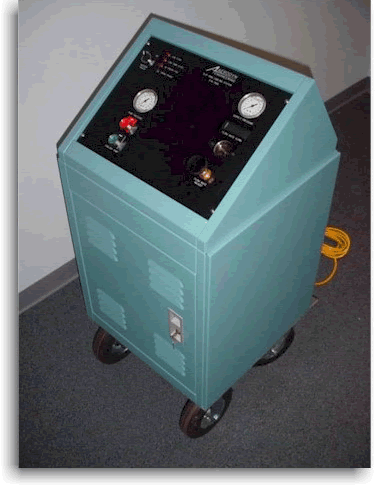

Cooling Cart

AEI designs and manufactures its own line of cooling carts. Our cooling carts will supply filtered purified coolant to the slipring while in operation. AEI's cooling units are extremely reliable and are designed and manufactured with the highest quality components and craftmanship available in the industry today. DC permanent magnet coupled pumps are employed within our system to deliver the cooling fluid, with full user instruments showing flowrate and system pressures. AEI cooling systems are equiped with battery backup to assure continued operation in the event of a site power failure.

Specifications

Pump:                                  DC, permanent magnet, magnetically coupled gear pump
Flow Rate:   　                     0 - 1 GPM 　　　
Tank:                      　　　   Stainless steel, 8 gallon capacity
Heat Rejection:                    2,500 BTU/HR, air/fluid heat exchanger
Filtration:                              5 micron sintered stainless steel filter
Voltage:                               110 / 220 VAC, 50 / 60 Hz
Power:                                  Less than 700 Watts
Battery Back-up:                  Provides 15 minutes operation after AC power failure
Controls:                              On / Off (can be remotely controlled)
                                             Pump On / Off (can be remotely controlled)
                                             Flow rate
Displays:                              Pump Pressure
                                             Slip Ring supply pressure
                                             Flow Rate (digital w/ analog output)
Alarms:                                 Low Flow
                                             Low Tank
                                             AC Power Fail

Major Customers

　- AFRL/PRTE
　- Allied Aerospace
　- Avio-Turin
　- Boeing – Comanche Tail Rotor Flight Test
　- Borg Warner
　- CIAM-Moscow
　- Crane Naval Weapons – Ammo Destruction Facility
　- Delco Remy
　- GE Energy
　- GE Gas Turbine
　- GE Lynn
　- GE Power Greenville
　- GE Power Schenectady – Steam Turbine
　- GE Transportation
　- GEAE
　- GEAE – CF34 Blade Out Slip Ring
　- Honeywell
　- Honeywell Engines
　- Kamov (Russia)
　- Naval Post Graduate School
　- NAWCAD
　- Nouvo Pignone (Italy)
　- Ohio State University
　- Power Systems Mfg.
　- Pratt Whitney
　- Purdue Aero Lab
　- Rolls Royce Energy Systems
　- Rolls-Royce Corp
　- RR Allison
　- Tech Dev – Wind tunnel Powered Simulator
　- Test Devices Inc.
　- Timken (aircraft bearings)
　- Turbomeca
　- Williams
　- Wright Patterson Air Force Base
　- Wyle Laboratories (Air Force)

Instrumentation Accessories:

AEROSHIM

Aeroshim are preformed segments of metal foil used to secure hard or soft cylindrical sensor leads by tack welding to a surface. Standard Aeroshim covers a wide range of common lead diameters and numbers of leads placed side by side. The temperature environment and substrate material to be welded to dictates the material of shim needed, but standard Aeroshim, made of Inconel 600 alloy, is very versatile. Customers are amazed at how much time and money can be saved by taking advantage of this simple and widely used product. For requirements not met by standard Aeroshim, Aerodyn is especially capable of fabricating a custom type in a cost-effective manner.

Aeroshim — rolled

Aeroshim ribbon — regular          Aeroshim ribbon — rolled           Shim Forming Pliers

Instrumentation Accessories:

Tools and Materials

Micro Pencil Torch

MGO Pliers                                                                                     MGO Strippers                             MGO Cutters

Aeroblaster

Safy Suppliers                                                                                  Text Box

T/C Wire                                                                                           Prandtl Tube
